Bonded NdFeB Magnets

PRODUCT STANDARD

DESCRIPTION OF PRODUCTS

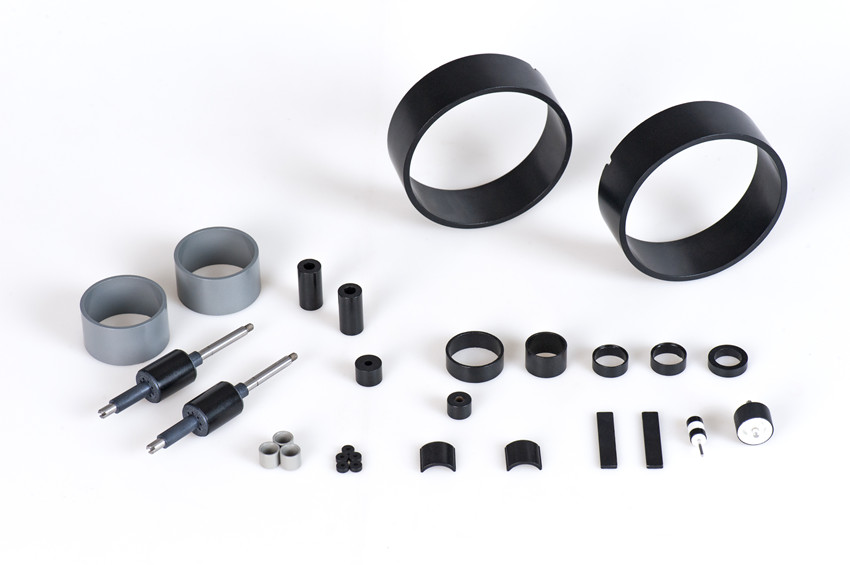

Bonded NdFeB magnets are manufactured by binding rapid-quenching NdFeB powder. The powder is mixed with resin to form a magnet by compression molding with epoxy or infection molding with nylon.

DOWNLOAD LARGER MAP DETAIL PLAN

DESCRIPTION OF PRODUCTS

Bonded NdFeB magnets are manufactured by binding rapid-quenching NdFeB powder. The powder is mixed with resin to form a magnet by compression molding with epoxy or infection molding with nylon. The latter technique is particular effective in large volume production, though the magnetic value of products is lower than those made with compression molding because of their relatively lower density. Various shapes of high dimensional accuracy can be produced without further processing. Surface is treated by epoxy coating or nickel-plating to prevent corrosion

With different ratio of additives to NdFeB powder, magnetic properties of hybrid NdFeB magnets can be tuned in a wide range. Once the ratio is fixed, magnetic property fluctuation can still be limited in a narrow bank. Hybrid magnets will meet customerˇŻs specified properties.

Rapidly quenched NdFeB powder used for bonded magnets is multi grain with grain size of sub-micron. Powder is isotropic in magnetic properties, which results in flat increasing of remanence and intrinsic coercivity with applied field. Magnet can only be magnetized to saturation in high fields.

Bonded NdFeB Magnets (Injection Molded)
Typical Magnetic Properties

Grade	Max. Energy Product		Remanence	Coercive Force				Rev. Temp. Coeff.		Working Temp.	Density
	(BH)_max		B_r	H_c		H_ci		B_d	H_d	T_c	D
	MGOe	kJ/m³	T	kOe	kA/m	kOe	kA/m	%/°C	%/°C	°C	g/cm³
BNI-2	0.8-3.0	6.4-24	0.2-0.4	1.5-3.0	120-240	7.0-9.0	560-720	-0.15	-0.40	130	3.5-4.0
BNI-4	3.5-4.5	28-36	0.4-0.49	3.1-3.9	247-310	7.2-9.2	573-732	-0.10	-0.40	180	4.0-5.0
BNI-6	5.2-7.0	42-56	0.49-0.57	3.9-4.8	312-382	8.0-10.0	637-796	-0.10	-0.40	150	5.0-5.5
BNI-8	7.4-8.4	59-67	0.57-0.63	4.8-5.4	382-430	8.5-10.5	676-835	-0.10	-0.40	150	5.0-5.5
BNI-6H	5.0-6.5	40-52	0.48-0.56	4.2-5.0	334-398	13.0-17.0	1035-1353	-0.15	-0.4	180	5.0-5.5

Bonded NdFeB Magnets(Compression Bonded)
Typical Magnetic Properties

Grade	Max. Energy Product		Remanence	Coercive Force				Rev. Temp. Coeff.		Working Temp.	Density
	(BH)_max		B_r	H_c		H_ci		B_d	H_d	T_w	D
	MGOe	kJ/m³	T	kOe	kA/m	kOe	kA/m	%/°C	%/°C	°C	g/cm³
BNP-6	5.0-7.0	40-56	0.52-0.60	3.8-4.5	304-360	8.0-10	640-800	-0.10	-0.40	140	5.3-5.8
BNP-8	7.0-9.0	56-72	0.60-0.65	4.5-5.5	360-440	8.0-12	640-960	-0.10	-0.40	140	5.6-6.0
BNP-10	9.0-10.0	72-80	0.65-0.70	4.5-5.8	360-464	8.0-12	640-960	-0.10	-0.40	120	5.8-6.1
BNP-12	10.0-12.0	80-96	0.70-0.76	5.8-6.0	424-480	8.0-11	640-880	-0.10	-0.40	130	6.0-6.2
BNP-8H	6.0-9.0	48-72	0.55-0.62	5.0-6.0	400-480	12-16	960-1280	-0.07	-0.40	120	5.6-6.0
